  • AVSS Drone Parachute for DJI M200 Front

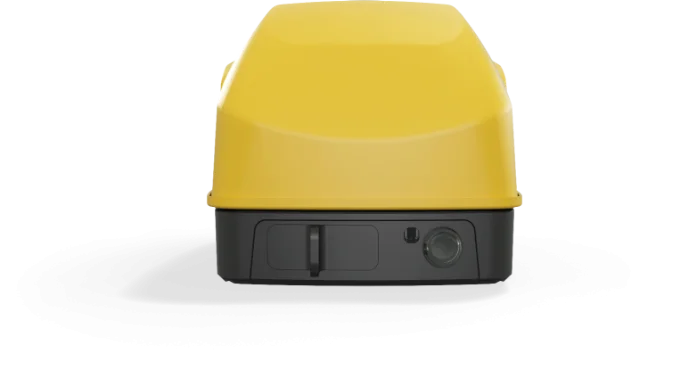

  • AVSS Drone Parachute for DJI M200 Parachute Pod

Drone Parachute for DJI M200 Series

Compatible with DJI Matrice 200 V1, Matrice 200 V2, Matrice 210 V1, Matrice 210 V2, Matrice 210 RTK V1, and M210 RTK V2. Rugged GPC Protective Case Included.

About the Drone Parachute Recovery System

Overview

The ASTM F3322-18 compliant PRS-M200 has been designed to easily integrate with the DJI Matrice 200 drone series. The attachment bracket secures the parachute recovery system without interfering with sensitive GPS modules and easily fits in your carrying case. The system includes an electronic module to power the Parachute Pod™ and flight termination system. The onboard system comes equipped with an automatic triggering device to deploy the parachute. An independent remote for manually deploying the drone parachute gives you constant control over your operations.

Key Features

  • Field replaceable Parachute Pods™
  • Plug-and-play flight termination system with an option of 0 meter/feet deployment
  • Less than 0.5-second automatic deployment
  • Greater than 1km/0.62mi manual deployment range
  • ASTM F3322 and third party documentation that is relevant to Civil Aviation Authorities

Complete Set Includes

  • One Parachute Pod™
  • Rugged GPC protective case
  • Electronic module
  • Flight termination system
  • Autonomous triggering System
  • Attachment bracket
  • Manual triggering device
  • Electronic module batteries
  • One (1) year, three (3) deployment warranty
  • CAA & ASTM F3322 documentation

Pricing is in USD.

Performance Overview

  • Total weight: 790 grams / 1.74 lbs
  • Minimum deployment altitude: 34.9 m / 114.5 ft
  • Average descent rate: 4.01 mps / 13.15 fps

Note: Depending on the Civil Aviation Authority data collection and analysis requirements, performance metrics may require different calculation methods.

Technical Specifications

System Overview
  • Total weight: 790 grams
  • Drone Parachute reuse method: Prepacked pods
  • Deployment technology: Non-explosive
  • Deployment trigger: Manual and/or autonomous
  • Flight termination system: Yes
  • Independent remote: Yes
  • Warranty: 1 year; 3 deployments
System Features
  • Main system weight: 469 grams
  • Deployment speed: 20ms
  • Deployment full inflation: 0.57s to 1.30s
  • Battery life: 6 hours
  • Operating temperature: -20C° to +50C°
Parachute Pod™
  • Drone Parachute size: 3m²
  • Risers / attachment location: Internal
Attachment Bracket
  • Material: Carbon fibre / aluminum
  • Attachment location: Top mounted – centre of body
Independent Remote
  • Range: <2km
  • Frequency: 915MHz / 868MHz
PRS-M200 Firmware (April, 2022 - 3.117.17.10)
Release Version: 3.117.17.10
Release Date: 2022-04-14
Release Notes:
  • Critical bug fix to disable gyro calibration during flight
  • New Remote firmware. Remote notification repeats every 30 seconds if FTS is disconnected or Pod continuity is lost
  • New Firmware Update Procedure: Users must update the remote, PRS, and daughterboard to V3 in order to fly with the PRS

Firmware for 915MHz (North America, South America, Hong Kong, Australia, New Zealand, Japan):

PRS-M200-915

Firmware for 868MHz (Europe):

PRS-M200-868

Video Instructions for calibration can be found on the AVSS YouTube Channel:

Calibration While Attached to the Drone

Calibration Utilizing the GPC Case

Imagery for illustration purposes only. Specifications are subject to change without notice.
